ST Motorized Trolley for IPN beams

Categories: , ,

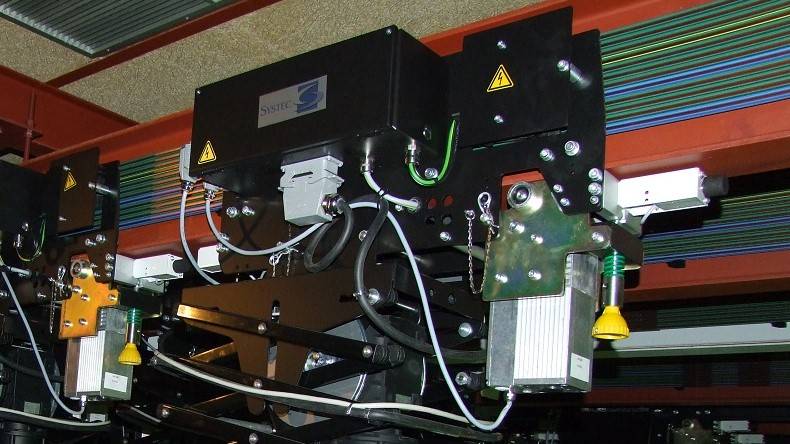

Motorized trolleys  for automated studios with fast lock hoist attachment for SYSTEC motorized pantographs or telescopes. All connections between trolley and hoist are plug-in type serving an easy installation and service. Two collision detectors (optional) will stop the trolley movement in case an obstacle is touched.
Equipped with 6 rollers for smooth movement on Ibeams IPN 200 or IPN 300. Manual movement in case of emergency operation is also possible.

see also our other Studio Accessories

Safe working load (SWL) 200 kg standard version, 600 kg chain hoist version
Hoist attachment Systec fast lock
Horizontal speed 7,2 m/ min
Power supply 400V/50Hz – 3 phase
Dimensions A= 1100 mm, B= 800 mm, C=510 mm
Ambient temperature 0-40 ° C
Standards DIN 15560-46, BGV C1
Order Code I-beam Power Collect Weight Studio Height
ST200 IPN 200 2 x 8 45 kg 7,0   m
ST300 IPN 300 2 x 12 47 kg 9,0   m
ST-APOS Horizontal positioning system, space for one power collector required
ST-COL Collision detectors for motorized trolley
